Tug Axis—1T/2T

Battery powered tug with a 1 or 2 tonne tow capacity

Features at a glance

One tonne (Axis 1T) or two tonne (Axis 2T) tow capacity.

Turret with turret lock for easy reversing.

Three speed motor with emergency stop.



Electrodrive's Tug Axis towing a trolley
Electrodrive's Tug Axis towing a trolley

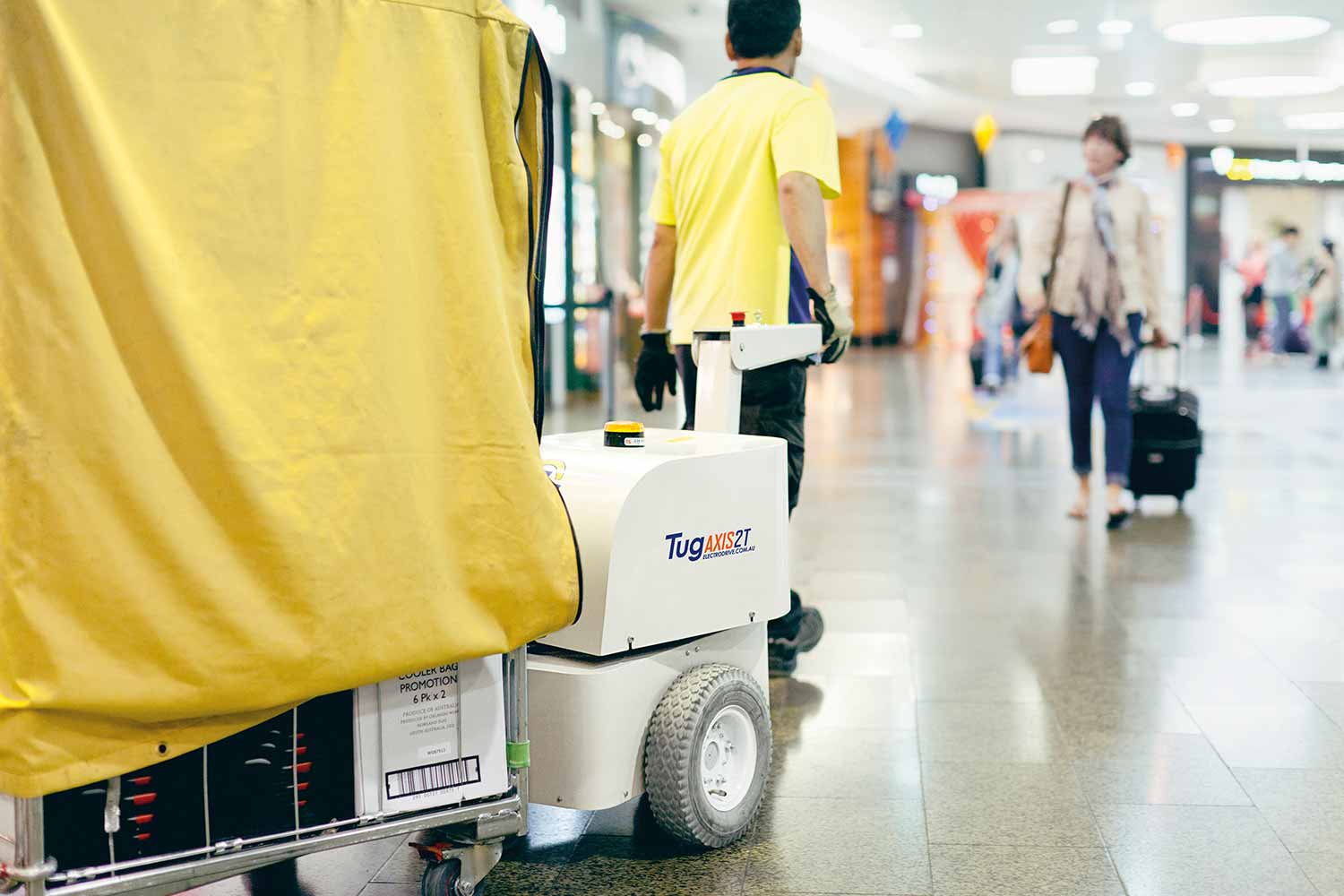

Electrodrive's Tug Axis towing a large trolley through an airport
Electrodrive's Tug Axis towing a large trolley through an airport

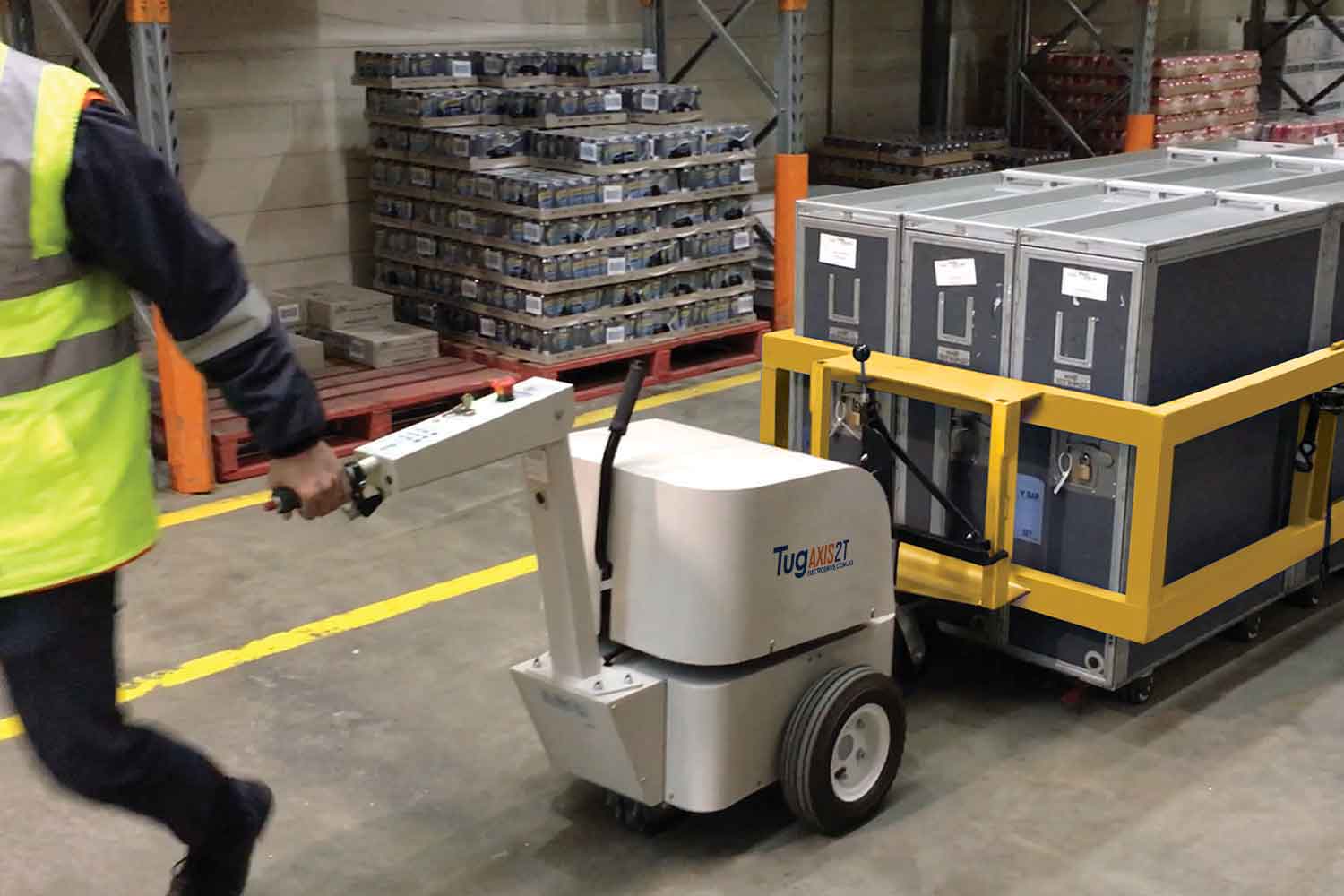

Electrodrive's Tug Axis moving an airline cart
Electrodrive's Tug Axis moving an airline cart

Australian-made electric tug

Electrodrive's powerful battery operated Tug Axis is available in one (1T) or two tonne (2T) towing capacities. Supplied with an auto-latching hitch for easy attachment to trolleys, it is ideal for industrial towing, as well as transporting medical carts around hospitals, moving heavy specialist equipment or moving heavy trolleys around factories or retail.

Ergonomically designed tug

Using the tiller handle to tow the tug, the operator is in front of the load, increasing visibility and reducing the risk of collisions.

Powered towing can eliminate push/pull injuries caused by manually moving heavy trolleys or repetitive movements. Read more about our ergonomically designed tugs.


Typical applications

The Tug Axis 1/2T is suitable for retail and light industrial towing. It can be used in airports, factories, warehouses, apartment buildings, or large facilities. This powered tug is also ideal for transporting medical carts around hospitals or moving heavy specialist equipment.

Features and specifications

Order codes

  • Tug Axis 1 tonne (no hitch): TUGAXIS1TNH

  • Tug Axis 2 tonne (no hitch): TUGAXIS2TNH

Tow capacity

  • Tug Axis 1T: 1000 kg

  • Tug Axis 2T: 2000 kg

(For towing on flat ground, with reduced towing capacity up to 8 degrees.)

Max. speed

Up to 5 km per hour.

Speed mode

Three speed control with forward, reverse and emergency stop.

Usability

  • Battery operated and rechargeable.

  • Ergonomic design.

  • Simple to use.

  • Quiet, smooth operation.

  • Zero emissions.

Hitching

Country of origin

Designed and manufactured in Australia.

Safety features

  • Intuitive control with standard automatic safety brake, forward and reverse drive.

  • Emergency stop button.

  • Emergency back-off button.

Warranty

  • Comprehensive 12-month warranty.

  • Six month warranty on battery and charger.

Service

Training and servicing programs are available.

Download our Preventative Maintenance Plans for more information.

Battery

Two 12V 42Ah MK-gel batteries with 24V smart charger.

Dimensions (L/W/H)

1480/610/852 mm (handle down)

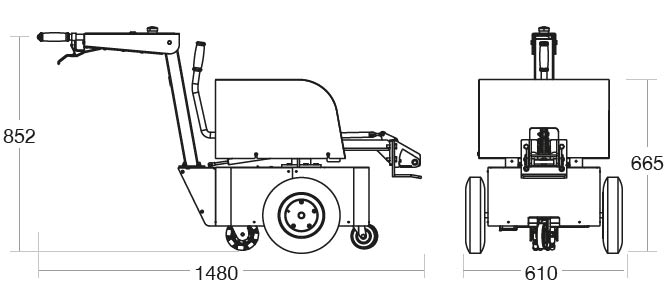

A diagram of the Tug Axis with its dimensions




The powered tug range

The Powered Tug range
