Tub Trolley Mover

Ergonomic Tub Trolley

Move tubs with ease

Tub Trolley Mover diagram



Features at a glance

Available in stainless steel (grade 304) or powder-coat.

Fitted with quality Australian-made food grade castors (Fallshaw).

Ergonomic design.

Easy to manoeuvre (no bending or lifting required)

An ergonomic tub trolley solution to eliminate awkward bending, unsafe lifting and difficult steering when moving tubs.

Designed for the food and retail industries, Electrodrive’s ergonomic tub trolley improves manual handling of food and goods by reducing the risk of musculoskeletal injury caused by awkward bending and pushing of heavy tubs at floor level.

Easy to use—simply position the trolley on either side of the tub, and then push down on the foot pedal to lift the tub and securely lock it into place—enabling effortless transportation of heavy tubs. Watch our video for a demonstration.

Customer trials have proven to increase the overall productivity by 30%. This was achieved by eliminating manual handling associated with lifting, shifting and tipping heavy tubs and reducing the labour hours involved in the daily process of emptying food waste.

Benefits

  • Increases efficiency by up to 30%.

  • Ergonomic design to reduce the risk of injury.

  • Highly manoeuvrable and easy to use.

  • Can be used with an Electrodrive tipper (contact us for more info).

Typical applications

Suitable for the food and retail industries for improved handling of food and goods.

Features and specifications



Order code

Tub trolley: SIE3038
Tub and trolley tipper: SIE3029

Standard load rating

560 kg with Fallshaw’s non-marking 100 mm grey rubber castors (x2 fixed castors and x2 swivel castors)

Finish

Available in powder-coat for general use, or stainless steel (grade 304) for raw food handling.

Castors

Fitted with quality Australian-made Fallshaw castors— food grade castors (x 2 swivel and x 2 fixed).
Order codes: MSC100G/MSF (x2) and MSC100G/MSP (x2)

Usability

  • Highly manoeuvrable and easy to use.

  • Can be designed to suit your current tubs.

  • Ergonomic design with no bending or lifting required.

  • Simple foot pedal for lifting or releasing the tub.

Country of origin

Designed and manufactured in Australia.

Warranty

  • Comprehensive 12-month warranty.

Dimensions (L/W/H)

1055/580/948 mm

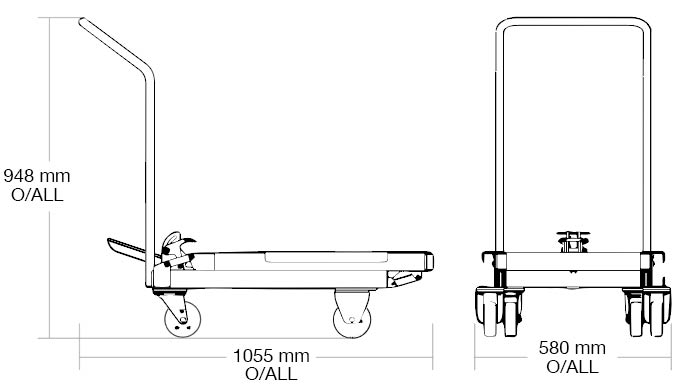

Tub Trolley Mover dimensions
