Hitches for Gzundas
Common hitches and accessories for the Electrodrive bed mover and linen mover range
Below is information on our hitch range for moving hospital beds, stretchers, trolleys and linen trolleys.
The Gzunda bed movers and linen movers have been designed to be adaptable to many different types of beds and trolleys. It is however, necessary to configure some basic elements to ensure absolute compatibility.
To find out whether your healthcare bed or stretcher is compatible with the Gzunda bed mover, please download our compatibility chart.

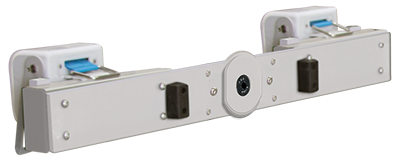

Flex hitch
|
Description
|
Flex hitch kit with hitch bar.
|
|
Applications
|
Hospital beds, stretchers, treatment chairs and low-lying trolleys/gurneys.
|
|
Compatibility
|
Gzunda patient movers
|
|
Size
|
780 mm length
|
|
Order code
|
EDHTFLEX001
|
|

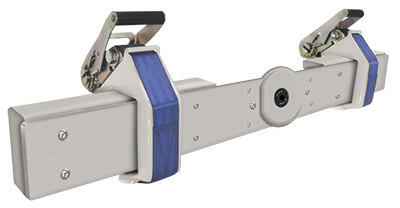

Ratchet hitch
|
Description
|
Ratchet hitch kit with hitch bar.
|
|
Applications
|
Hospital beds, stretchers, treatment chairs and low-lying trolleys/gurneys.
|
|
Compatibility
|
Gzunda patient movers
|
|
Size
|
780 mm length
|
|
Order code
|
EDHTRATCH001
|
|

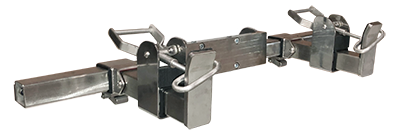

Manual gripper hitch
|
Description
|
Manual gripper hitch kit with hitch bar.
|
|
Applications
|
Hospital beds, stretchers, treatment chairs and low-lying trolleys/gurneys.
|
|
Compatibility
|
Gzunda bariatric patient mover
|
|
Size
|
780 mm length
|
|
Order code
|
EDHTMANGRIP001
|
|

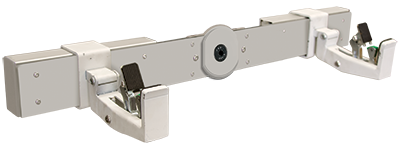

Automatic gripper hitch
|
Description
|
Automatic gripper hitch kit with hitch bar.
|
|
Applications
|
Hospital beds, stretchers, treatment chairs and low-lying trolleys/gurneys.
It has manual adjustment
to suit any bed frame.
|
|
Compatibility
|
Gzunda patient movers (suits 20-40 mm bed frame), excluding bariatric.
|
|
Size
|
780 mm length
|
|
Order code
|
EDHTAUTOGRIP001
|
|

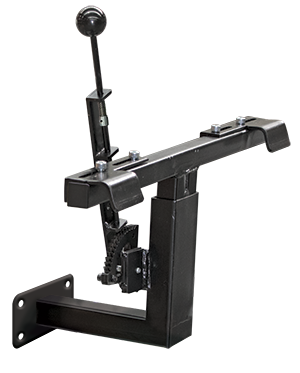

Groove hitch
|
Description
|
Groove hitch kit.
|
|
Applications
|
Moulded plastic laundry trolleys with a width of 700-720 mm.
It has manual height adjustment to suit any handle height/handle slots.
|
|
Compatibility
|
Gzunda linen mover and Tug linen mover.
|
|
Size
|
650 mm (overall length of bar).
Hitch range: 295–650 mm (horizontal) and 95 mm (vertical).
|
|
Order code
|
EDHTGROOVE001*
|
|
* EDHTGROOVE001: The whole hitch bar can be manually raised up and down to suit different handle slots. The 95 mm vertical hitch range relates to the range of movement inside the hitch point to allow it to securely hold on to the trolley.

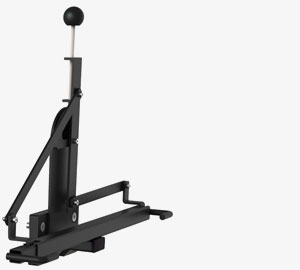

Clamp hitch
|
Description
|
Clamp hitch kit.
|
|
Applications
|
Metal framed trolleys, caged linen trolleys, surgical instrument Rapini trolleys
and tall stock trolleys.
|
|
Compatibility
|
Tug Compact linen mover.
|
|
Size
|
520-720 mm length.
|
|
Order code
|
EDHTCLAMP001
|
|
Retrofittable hitch kits
To suit the common hitch bars above (to enable multiple hitch styles on your bed mover or linen mover).
|
Hitch unit kit
|
Order code
|
|
|
Flex hitch unit kit
|
EDHTFLEX001-001
|
 |
|
Ratchet hitch unit kit
|
EDHTRATCH001-001
|
 |
|

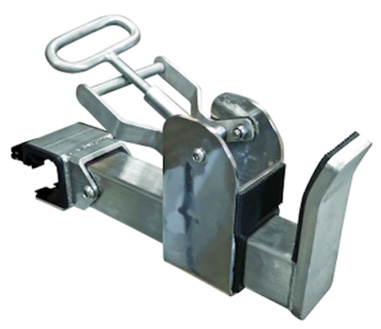

Manual gripper hitch unit kit
|
EDHTMANGRIPPER-001
|
 |
|
Automatic gripper hitch unit kit
(20-40mm range)
|
EDHTGRIPP001-001
|
 |
|

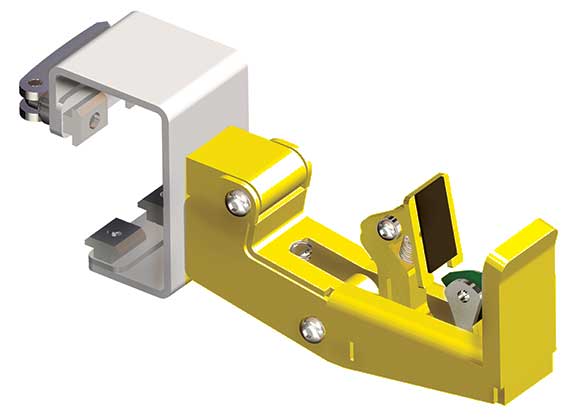

Gripper hitch unit kit
(55mm jaw)
|
SIE0305A
|
 |
|

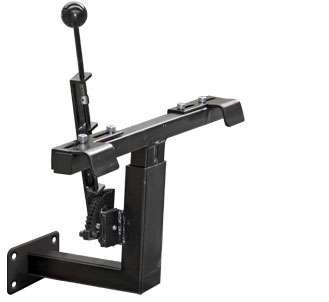

Groove hitch unit kit
|
EDHTGROOV001-001
|
 |
|

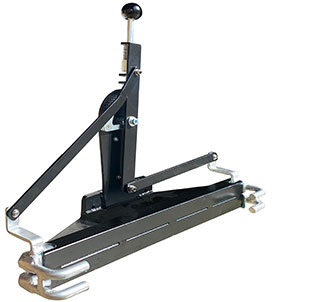

Clamp hitch (heavy duty) unit kit
|
EDHTCLAMP002
|
 |
Hitch extensions
|
Hitch unit kit
|
Order code
|
|
|

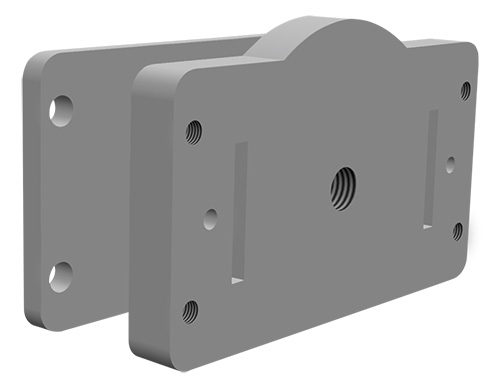

60 mm hitch extension suits GZ10SL and GZS.
|
EDHTHITCHEXT60
|
 |
|

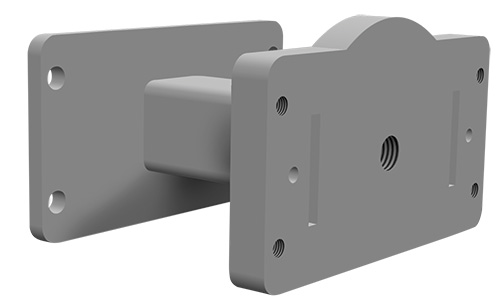

120 mm hitch extension suits GZ10SL and GZS.
|
EDHTHITCHEXT120
|
 |

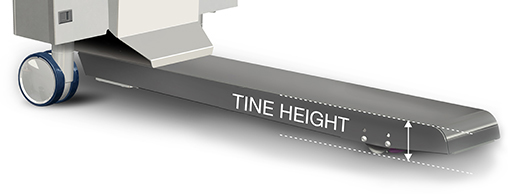

Middle tine height of Gzunda GZ10SL & GZBARI
Accessories
|
Description
|
Order code (factory-fitted)
|
|
Oxy bottle holder
|
GM1918F
|
|
Charger bracket (wall mounted)
|
EDBKTCHARGER
Not suitable for: GZBARI and GZS.
|
