How to choose the right bin lifter

The Liftmaster bin lifter range

1 Determine the size and weight of your full wheelie bin and how often you'll be tipping

Our range of Australian made bin lifters have models that can lift 80, 120, 140 and 240 litre wheelie bins weighing anywhere from 30-250 kg safely, with assisted lift units that you can safely use up to twice a day, all the way to powered hydraulic units that can lift and tip all day long.

2 Determine how many times a day you’ll be tipping

Assisted-lift bin lifters can safely lift their specified weights, but still require manual effort when tipping. So we recommend only using them between 2 and 10 times a day, per person, depending on the model you choose. If you need to tip more frequently, our powered bin lifters can lift heavier weights more often without the risk of muscle strains.

3 Determine the height of the dumper/skip bin you'll be tipping into

The Niftylift full-swing bin lifter and the Ecolift lift-and-tilt bin lifter are suitable for 1500 mm high skip bins. The rest of the range can be configured for use with either 1500 or 1800 mm high skip bins.

4 Determine the work area and space requirements of the bin lifter

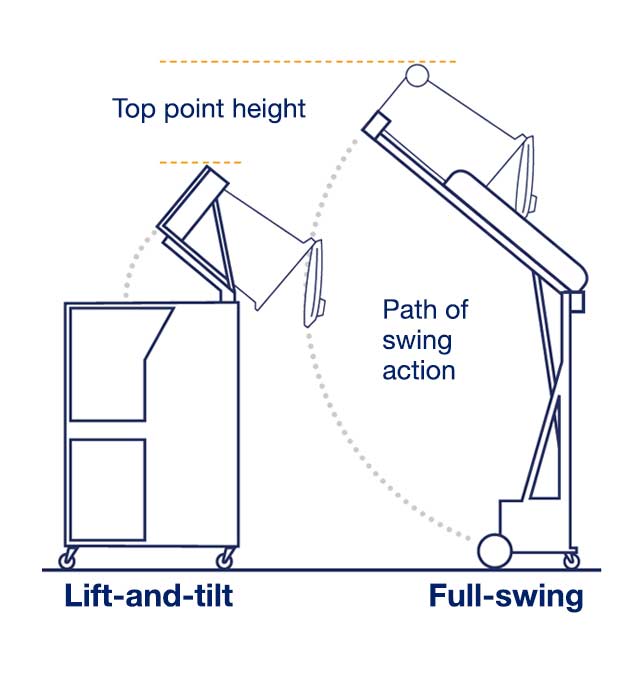

Full-swing: Due of the path of the swing action, full-swing bin lifters are only recommended for use in a controlled environment where pedestrian access is restricted. Full-swing bin lifters also need more height clearance than lift-and-tilt models so they may not be suitable for low ceiling areas like basements or underground car-parks.

Lift-and-tilt: For areas such as schools, retail centres, or anywhere where pedestrian access cannot be restricted, we recommend using a lift-and-tilt model, which encloses the lifting motion within the bin lifter's footprint.

If working with flammable materials: For industrial work areas that deal with flammable materials, we recommend using the spark-free full-swing Rugged—Manual bin lift.



Liftmaster bin lifter types



Bin lifter

Order code

Top point height
(mm)

Lifts per day

Lift capacity
(kg)

Full-swing bin lifters

The Liftmaster Niftylift bin lifter

Niftylift

NIFTYLIFT30

2850

Up to 2 lifts per person per day.

30

The Rugged (manual) bin lifter

Rugged (Manual)

BLHP1500
BLHP1500LL

3278

Up to 10 lifts per person per day.

100

BLHP1800

3752

The Rugged (powered) bin lifter

Rugged (Powered)

BLEH1500
BLEH1500LL

3278

Up to 50 lifts per day.

150

BLEH1800

3752

The Rugged (All-terrain) bin lifter

Rugged (All-terrain)

BLHPAT1500

3370

Up to 10 lifts per person per day.

100

BLEHAT1500

3370

Up to 50 lifts per day.

150

Lift-and-tilt bin lifters

Ecolift bin lifter

Ecolift

ECOLIFT50

2800

Up to 6 lifts per person per day.

50

Simplus bin lifter

Simplicity Plus

SIMPLUS150HY1500

2550

Up to 100 lifts per day.

150

SIMPLUS150HY1800

2800

Universal bin lifter

Universal

UBL250HYD1500

2550

Up to 100 lifts per day.

250

UBL250HYD1800

2800




Browse the bin lifter range
