Tug Compact Linen Mover
Battery-powered trolley mover with 500 kg capacity
|
Features at a glance
|
|
500 kg towing capacity
|
|
Compact and easy to manoeuvre in tight corridors
|
|
Designed for linen trolleys that are 500–700 mm wide
|
|
Ideal for towing linen trolleys fitted with two swivel and two fixed castors
|
Electrodrive's Tug Compact Linen Mover is a battery powered tug suitable for towing linen trolleys fitted with
two swivel and two fixed castors.

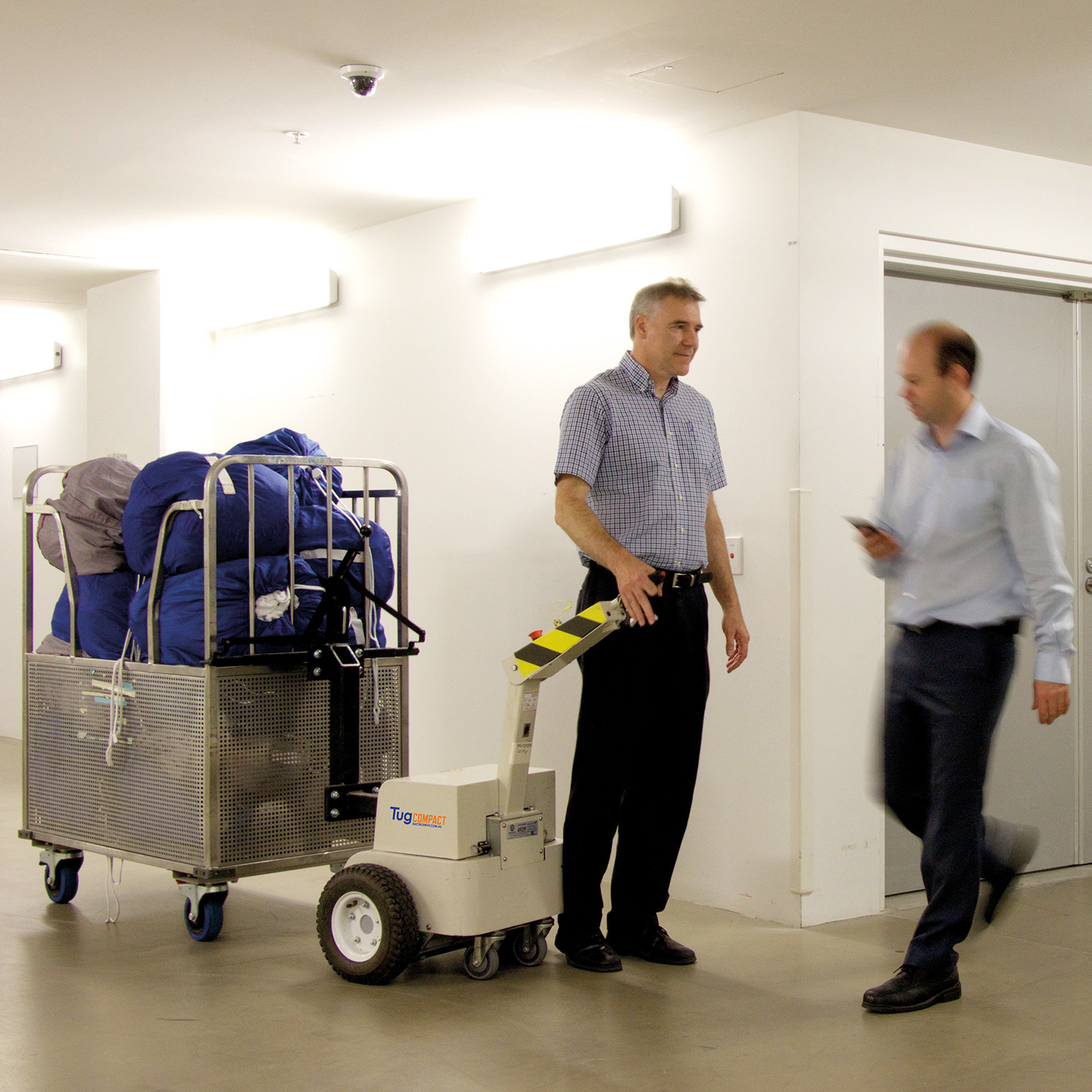

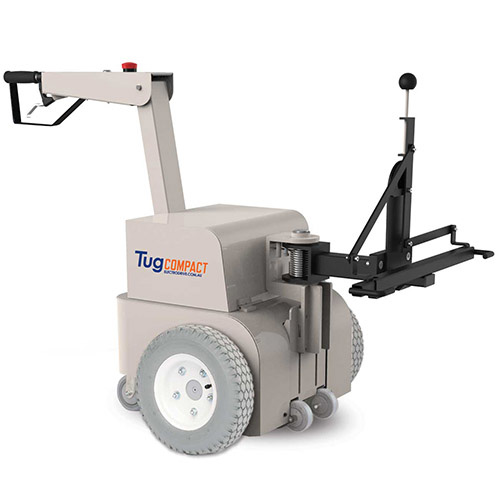

Tug Compact Linen Mover with its "front-of-load" control

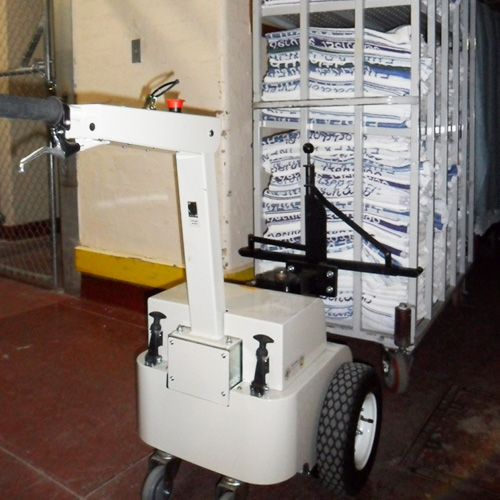

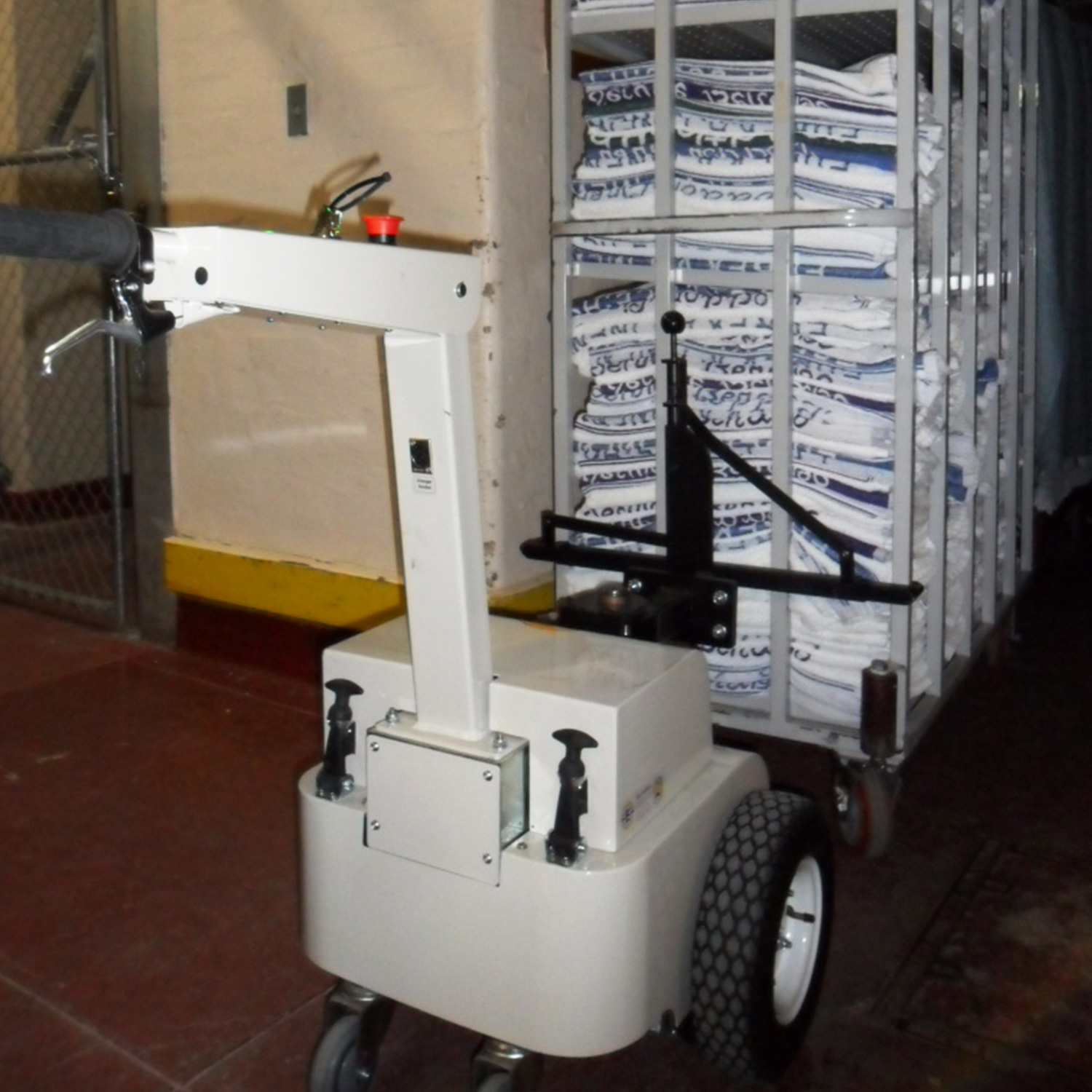

Tug Compact Linen Mover hitched to a linen trolley

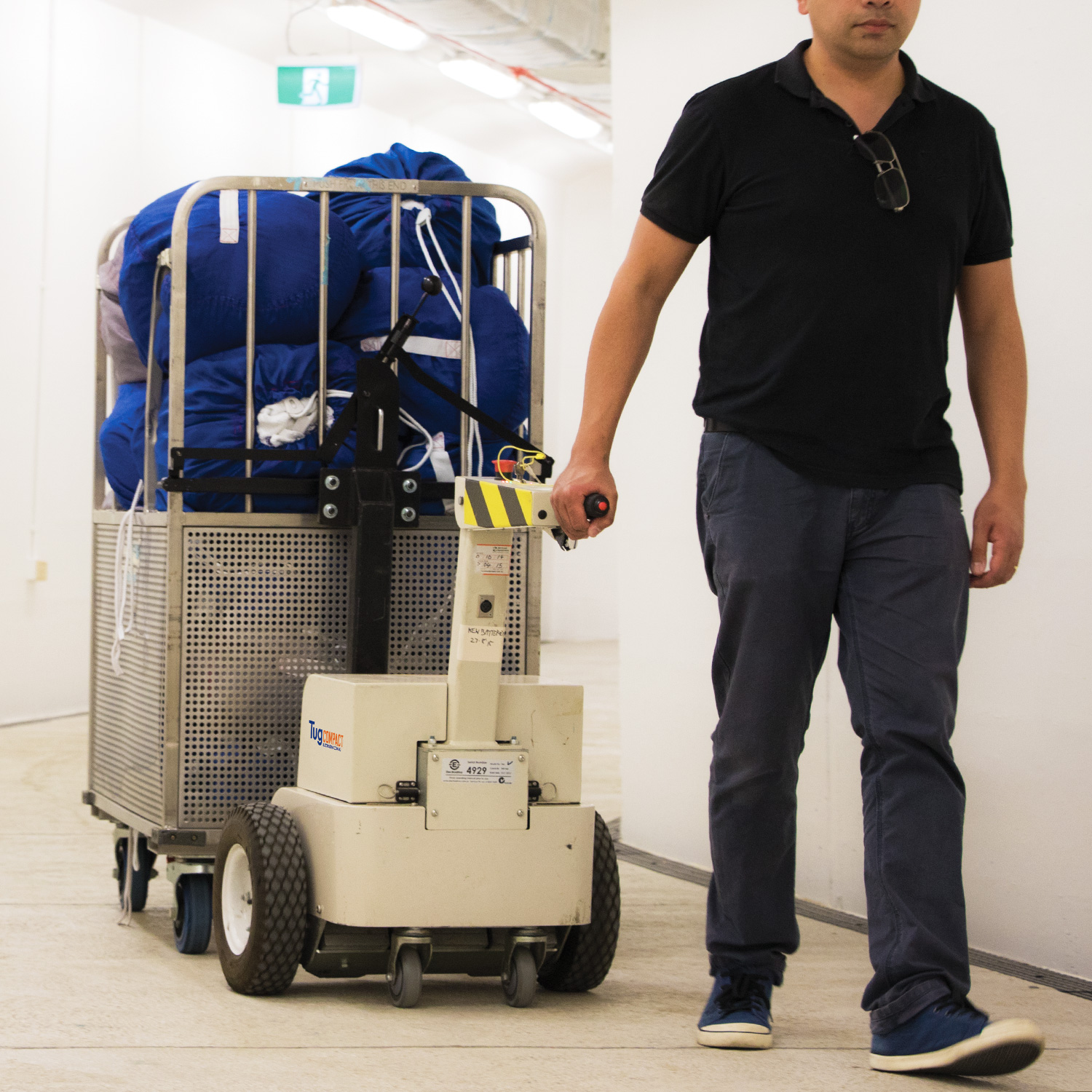

Tug Compact Linen Mover towing a full linen trolley
Move laundry trolleys with the powered tug linen mover
The Tug Compact Linen Mover is a battery powered tug (Tug Compact) with a custom hitch, specially designed for attaching to linen trolleys that are 500–700 mm wide.
As with all Electrodrive tugs, this configuration will allow a user to tow up to 500 kg safely. And because it is nimble, it will allow you to effortless manoeuvre heavy linen trolleys through tight corridors, avoiding the risk of collisions or manual handling injuries associated with linen handling.
With the forward facing tow action of a tug, the user is always protected against collisions and costly push/pull injuries.
Typical applications
-
Suitable for hospitals, commercial linen services, laundries, aged care facilities, casinos, hospitality.
-
Ideal for towing linen trolleys fitted with two swivel and two fixed castors.
Features and specifications
|
Order code
|
TUGLINENMOVER
|
|
Tow capacity
|
500 kg
|
|
Max. speed
|
Up to 5 km per hour.
|
|
Speed mode
|
Three speed control with forward, reverse and emergency stop.
|
|
Usability
|
-
Battery operated and rechargeable.
-
Ideal for towing linen trolleys fitted with two swivel and two fixed castors.
-
Ergonomic design.
-
Compact and easy to manoeuver in tight corridors.
-
Simple to use, and easily attaches to trolleys.
-
Quiet, smooth operation with zero emissions.
-
Zero emissions.
-
Non-marking tyres.
|
|
Hitching
|
|
|
Country of origin
|
Designed and manufactured in Australia.
|
|
Safety features
|
-
Intuitive control with standard automatic safety brake, forward and reverse drive.
-
Emergency stop button.
-
Emergency back-off button.
|
|
Warranty
|
|
|
Service
|
Training and servicing programs are available.
Download our Preventative Maintenance Plans for more information.
|
|
Battery
|
Two 12V-33Ah rechargeable batteries with 24V smart charger.
|
|
Dimensions (L/W/H)
|
1351/609/891 mm
|
