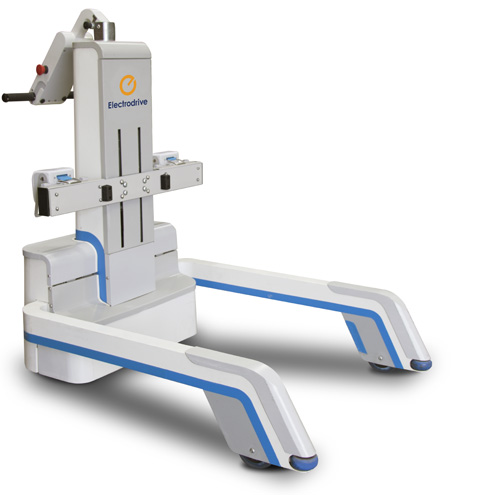

Gzunda GZS patient mover

Battery powered bed, stretcher or chair mover with a 600 kg capacity

Gzunda GZS
Features at a glance

600 kg capacity at 6° incline

Can move beds, stretchers, trolleys and chairs.

No under-bed clearance required.

Ergonomic design

Simple to use with push-button hitching.

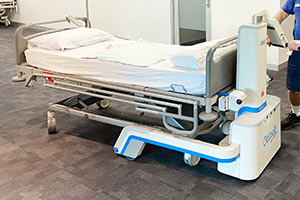

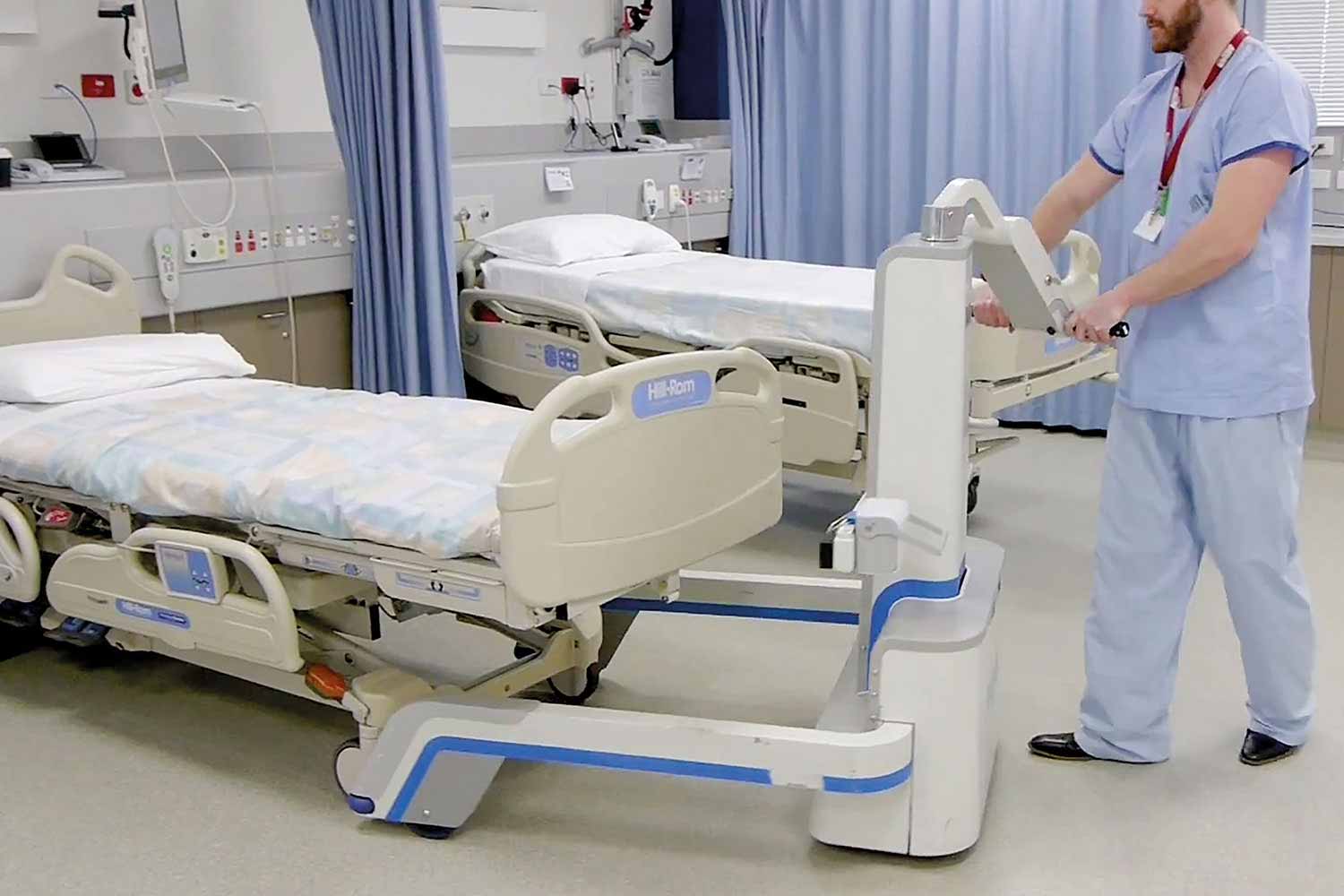

The Gzunda GZS powered bed mover hitching to a hospital bed
The Gzunda GZS powered bed mover hitching to a hospital bed

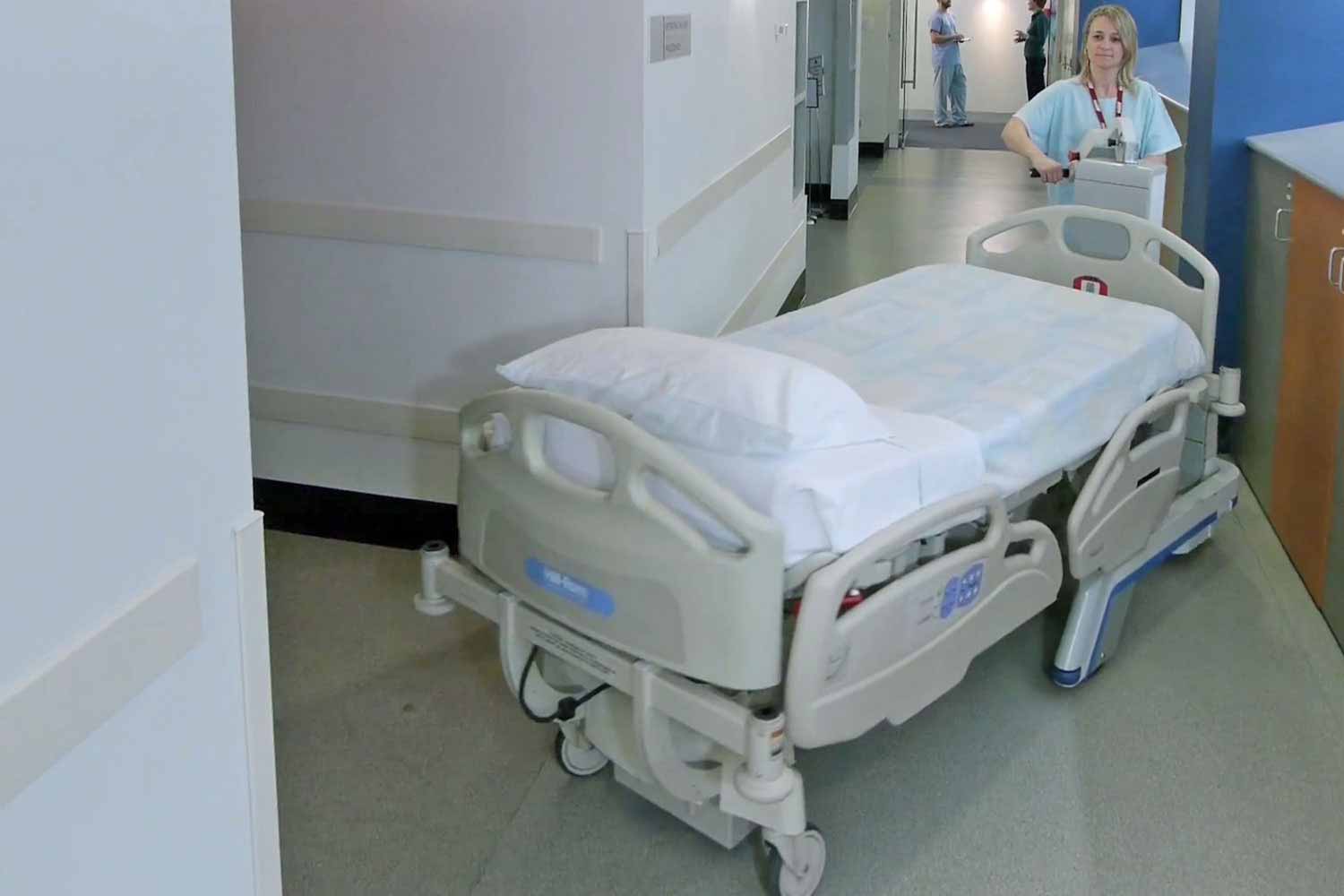

Electrodrive's Gzunda GZS powered bed mover manoeuvering a tight corner
Gzunda GZS powered bed mover manoeuvering a tight corner

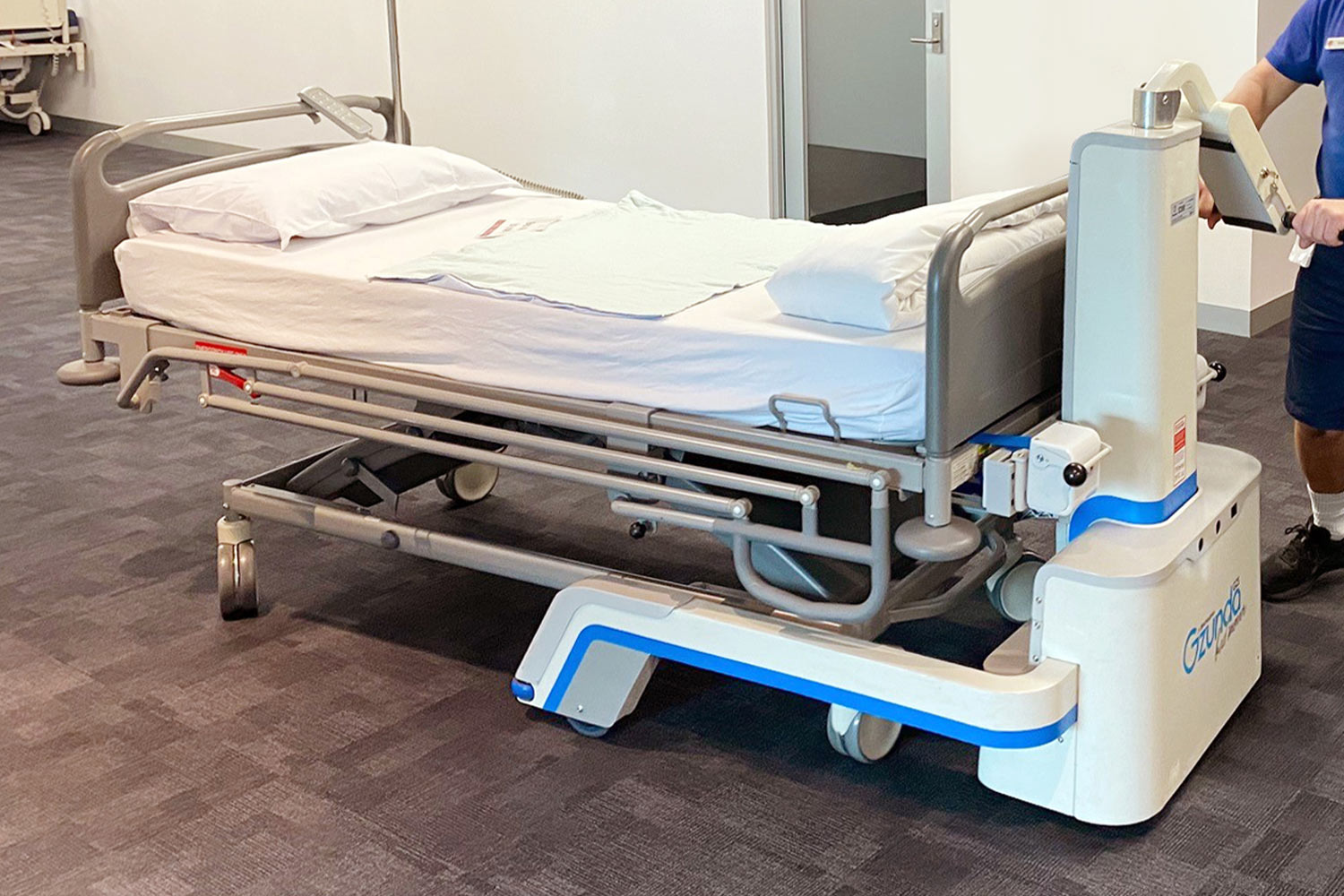

Electrodrive's Gzunda GZS powered bed mover in action
Gzunda GZS powered bed mover in action

Move hospital beds, stretchers and trolleys safely and efficiently

The Gzunda GZS powered bed mover allows a single user to effortlessly move heavy hospital beds, stretchers or trolleys. The motorised unit operates equally well with or without a patient, simplifying the task of moving beds or patients between wards, departments, or to and from theatre. This allows the driver to focus on the needs of the patient during transport.

Ergonomically designed powered bed mover

Ergonomically designed with a capacity of 600 kg, the silent motorised unit is able move a hospital bed up or down ramps, over carpet, into lifts, and around tight corners with minimal effort by the operator. The GZS has easy to use controls, including key start, twist grip variable speed control, horn, and emergency stop button. As with all Electrodrive equipment, the GZS comes with a comprehensive 12-month warranty, including parts and labour.

Compatible with a wide range of beds, stretchers or trolleys

Compatible with a wide range of beds, stretchers or trolleys, the GZS fits easily around your bed, therefore not requiring any 'under bed clearance'.

The Gzunda’s compact design, effortless manoeuvrability and detach-ability allows for safe and efficient management of a fleet of beds or trolleys within a healthcare environment.

Proudly designed and manufactured in Australia.


Typical applications

Suitable for moving hospital beds, stretchers or trolleys.

Features and specifications

Order code

GZSIN(NH)  (International)

GZSUS(NH)  (United States)

Load capacity

Move up to 600 kg on a 6° incline.

Max. speed

Up to 5 km per hour.

Speed mode

Three speed control with forward, reverse and emergency stop.

Usability

  • Highly manoeuvrable in tight spaces.

  • No under-bed clearance required.

  • Move beds with or without patients safely and efficiently.

  • Intuitive controls with twist-grip throttle and horn.

  • Battery operated and rechargeable.

  • Ergonomic design.

  • Simple to use.

  • Quiet, smooth operation.

  • Zero emissions.

  • Non-marking tyres.

Hitching

Country of origin

Designed and manufactured in Australia.

Safety features

  • Emergency stop button.

  • Emergency back-off button.

Warranty

  • Comprehensive 12-month warranty.

  • Six month warranty on battery and charger.

Service

Training and servicing programs are available.

Download our Preventative Maintenance Plans for more information.

Battery

Two 12V 260Ah MK-gel batteries with 24V smart charger.

Dimensions (L/W/H)

  • GZSIN(NH)  (International): 1245/920/1230 mm

  • GZSUS(NH)  (United States): 1245/1015/1230 mm

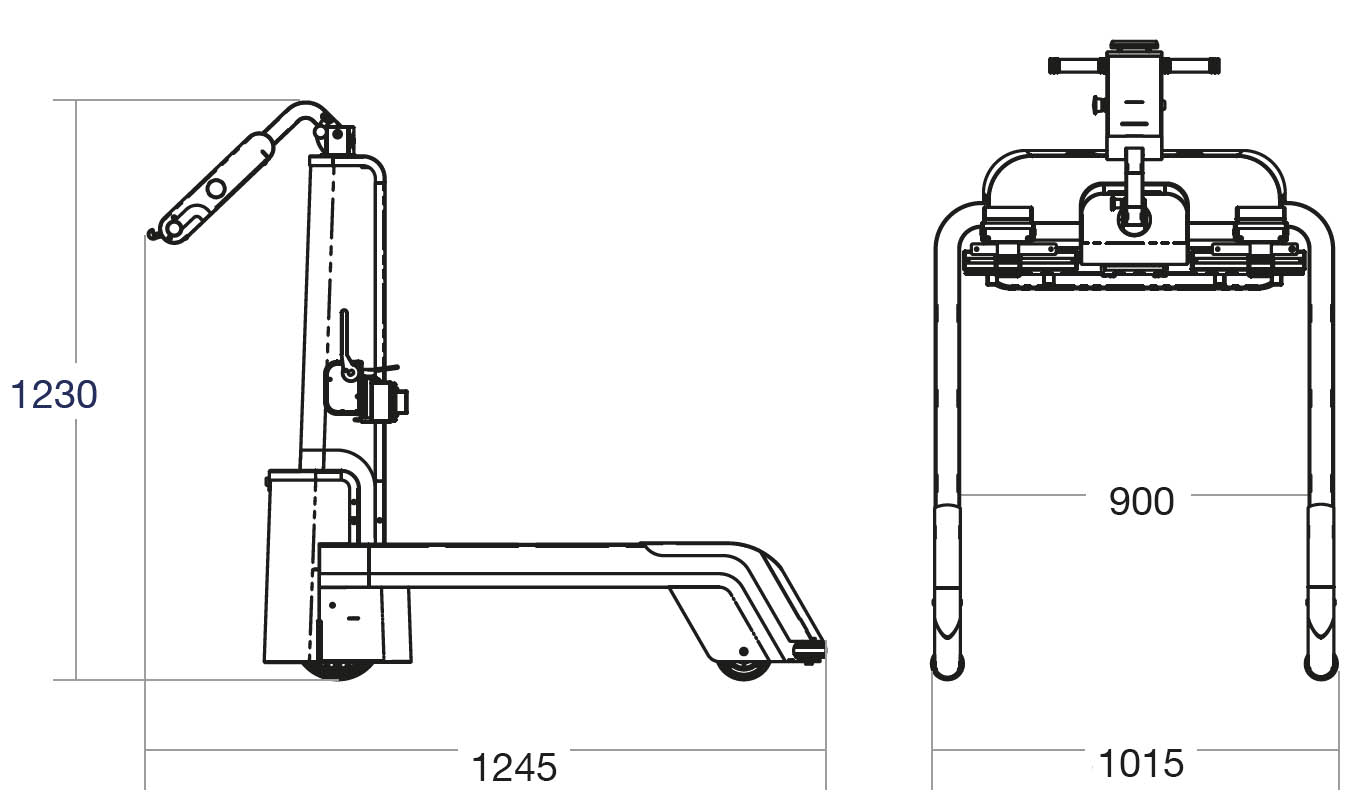

Gzunda GZS diagram
