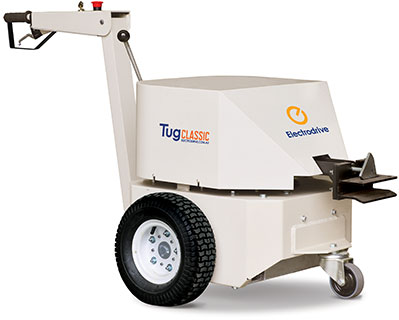

Tug Classic—powered tug

Battery powered pedestrian tow tugger with a 3.5 tonne tow capacity



Features at a glance

Up to 3.5 tonne tow capacity

Lock-tow hitch

Three speed motor with emergency stop



Electrodrive's Tug Classic application in a warehouse
Tug Classic towing a loaded trolley through a warehouse
Electrodrive's Tug Classic towing an airline cart
Tug Classic towing an airline cart
Electrodrive's Tug Classic towing a light aircraft
Tug Classic towing light aircraft

Australian-made ergonomic electric tug

The Tug Classic pedestrian operated electric tug is another powerful workhorse in the Electrodrive powered tug range. Able to tow up to 3.5 tonnes, the Tug Classic is designed to improve safety and efficiency, while reducing the risk of accidents that can occur when manually moving very heavy loads.

Ergonomically designed, the powered Tug Classic positions the user in front-of-the-load. The tiller control provides a natural walking posture, reducing the risk of strain or injury. With maximum forward vision the risk of collisions with pedestrians or objects is minimised. Read more about Electrodrive's ergonomically designed tugs.

Battery operated and rechargeable, the Tug Classic features an ergonomic foldable tiller handle for ease of use, three speed controls with forward and reverse, and emergency stop and 'back-off' buttons for maximum safety.

It is supplied with a lock-tow hitch for easy hitching to trolleys and loads.


Typical applications

Suitable for towing loads weighing up to 3.5 tonnes including heavy wheeled equipment, bogie wheels, light aircraft, heavy machinery, heavy specialist equipment and trolleys.

It can be used in airports, factories, warehouses, apartment buildings or large facilities.


Features and specifications

Order code

TUGCLASSIC3.5T

Tow capacity

3500 kg (on flat ground and up to 6° incline.)

Max. speed

Up to 5 km per hour.

Speed mode

Three speed control with forward, reverse and emergency stop.

Usability

  • Battery operated and rechargeable.

  • Ergonomic design.

  • Simple to use.

  • Quiet, smooth operation.

  • Zero emissions.

Hitching

  • Supplied with an lock-tow hitch.

  • Wide variety of hitches are available for easy attachment to trolleys.
    Check the hitching and accessories page for more information.

Country of origin

Designed and manufactured in Australia.

Safety features

  • Intuitive control with standard automatic safety brake, forward and reverse drive.

  • Emergency stop button.

  • Emergency back-off button.

Warranty

  • Comprehensive 12-month warranty.

  • Six month warranty on battery and charger.

Service

Training and servicing programs are available.

Download our Preventative Maintenance Plans for more information.

Battery

Two 12V 42Ah MK-gel batteries with 24V smart charger.

Dimensions (L/W/H)

1550/740/750 mm

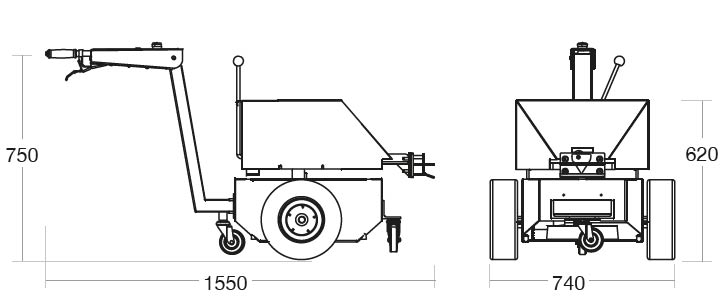

A diagram of the Tug Classic with its dimensions
