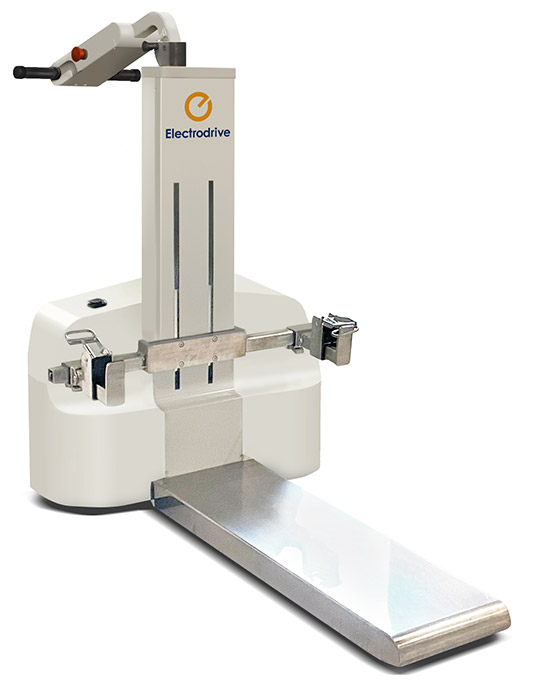

Gzunda bariatric patient mover

Australian-made battery powered bed mover with an 800 kg capacity

Gzunda bariatric patient mover
Features at a glance

800 kg capacity at 5° incline

Compact and easy to manoeuvre in tight corridors

Ergonomic design with power steering

Quiet to operate with non-marking tyres


Benefits

The Australian-made Gzunda GZBARI Bariatric Patient Mover is designed to move 800 kg (including the weight of the patient, the bed and accessories).

Easy to steer and rotate, its twin direction control rollers provide improved frictional ground contact for maximum manoeuvrability.

Featuring power steering, a twin motor drive and a spring-loaded hitch bar the unit can effortlessly manoeuvre up and down inclines or ramps up to 5° (five degrees).

Ergonomically designed with an adjustable-height tiller handle, the control panel features push buttons with three speed, reverse and emergency/safety buttons.

Fitting neatly under your hospital bed, it requires only 100 mm of under-bed clearance. Its compact design enables easy steering through tight corridors and in-and-out of lifts.

The tine is constructed from all steel and is lead-free.

Features of the Gzunda bariatric patient mover

Typical applications

Suitable for moving hospital beds or stretchers with bariatric patients.

Features and specifications

Order code

GZBARI

Load capacity

Move up to 800 kg on a 5° incline.

Max. speed

Up to 5.5 km per hour.

Speed mode

Three speed control with forward, reverse and emergency stop.

Usability

  • Compact and easy to manoeuvre in tight spaces.

  • Power steering.

  • Move beds with or without patients safely and efficiently.

  • Intuitive controls with twist-grip throttle and horn.

  • Battery operated and rechargeable.

  • Requires 100 mm of under-bed clearance.

  • Ergonomic design with adjustable height controls.

  • Fold-down controller for compact storage and lift access.

  • Simple to use.

  • Quiet, smooth operation.

  • Zero emissions.

  • Non-marking tyres.

Hitching

  • Simple hitching.

  • Wide variety of hitches are available.

Country of origin

Designed and manufactured in Australia.

Safety features

  • Emergency stop button.

  • Emergency back-off bar.

Warranty

  • Comprehensive 12-month warranty.

  • Six month warranty on battery and charger.

Service

Training and servicing programs are available.

Download our Preventative Maintenance Plans for more information.

Battery

Four 12V 33Ah (Valen Gell 12G33) batteries with 24V smart charger.

Optional accessories

Oxy bottle holder (Order code: GM1918F)

Tine height
(see pic below)

  • 100 mm.

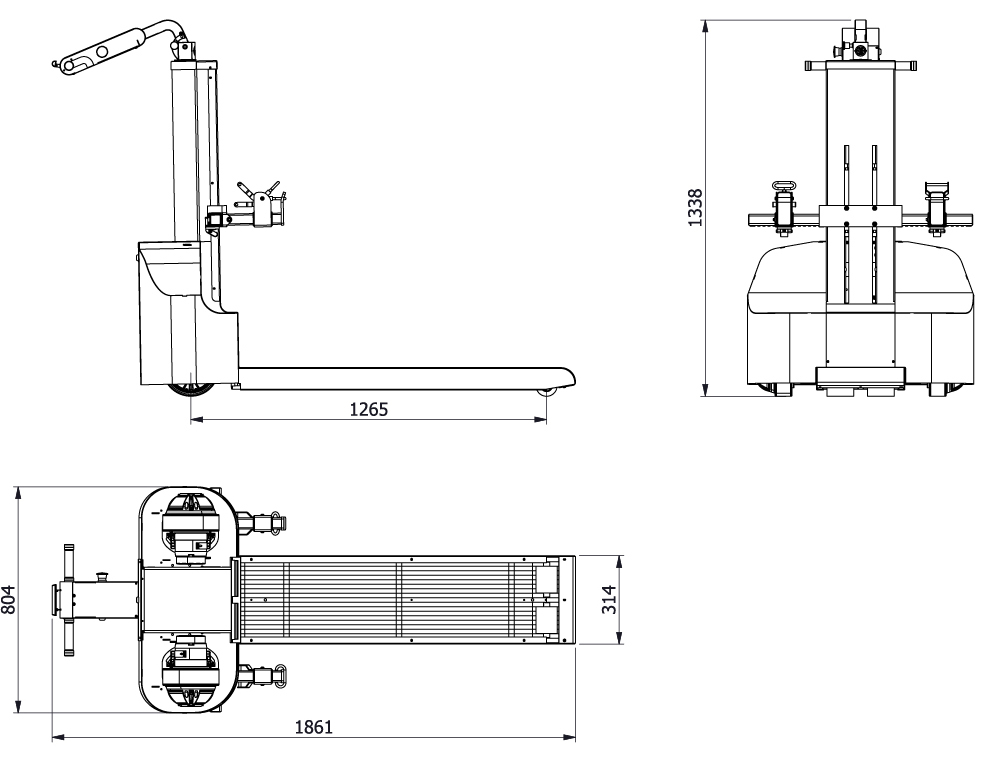

Dimensions (L/W/H)

1861/804/1338 mm



gzunGzunda Bariatric patient Mover tyne height

The powered patient mover range

Browse the powered bed mover range.
