Electrodrive logo

Gzunda linen mover

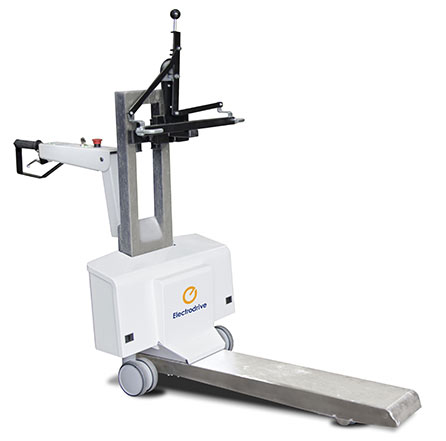

Battery powered linen trolley mover with a 500 kg capacity

Gzunda GZS
Features at a glance

500 kg towing capacity

Compact and easy to manoeuvre in tight spaces.

Ergonomic design.

Quiet to operate.

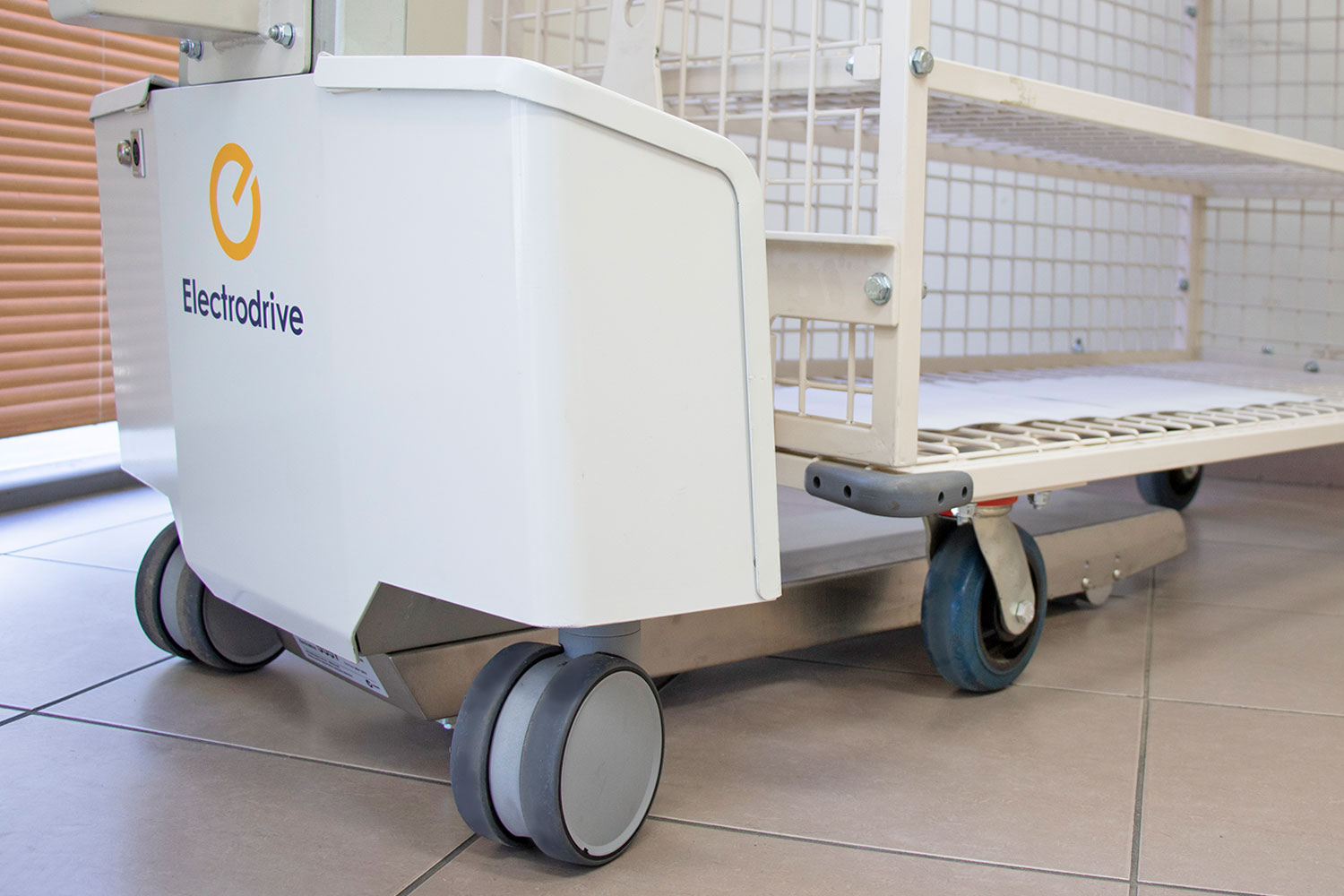

Electrodrive's Gzunda linen mover
The Gzunda linen mover

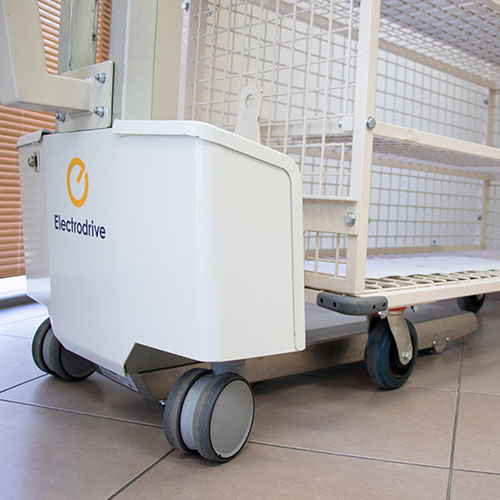

Electrodrive's Gzunda linen mover
The Gzunda linen mover

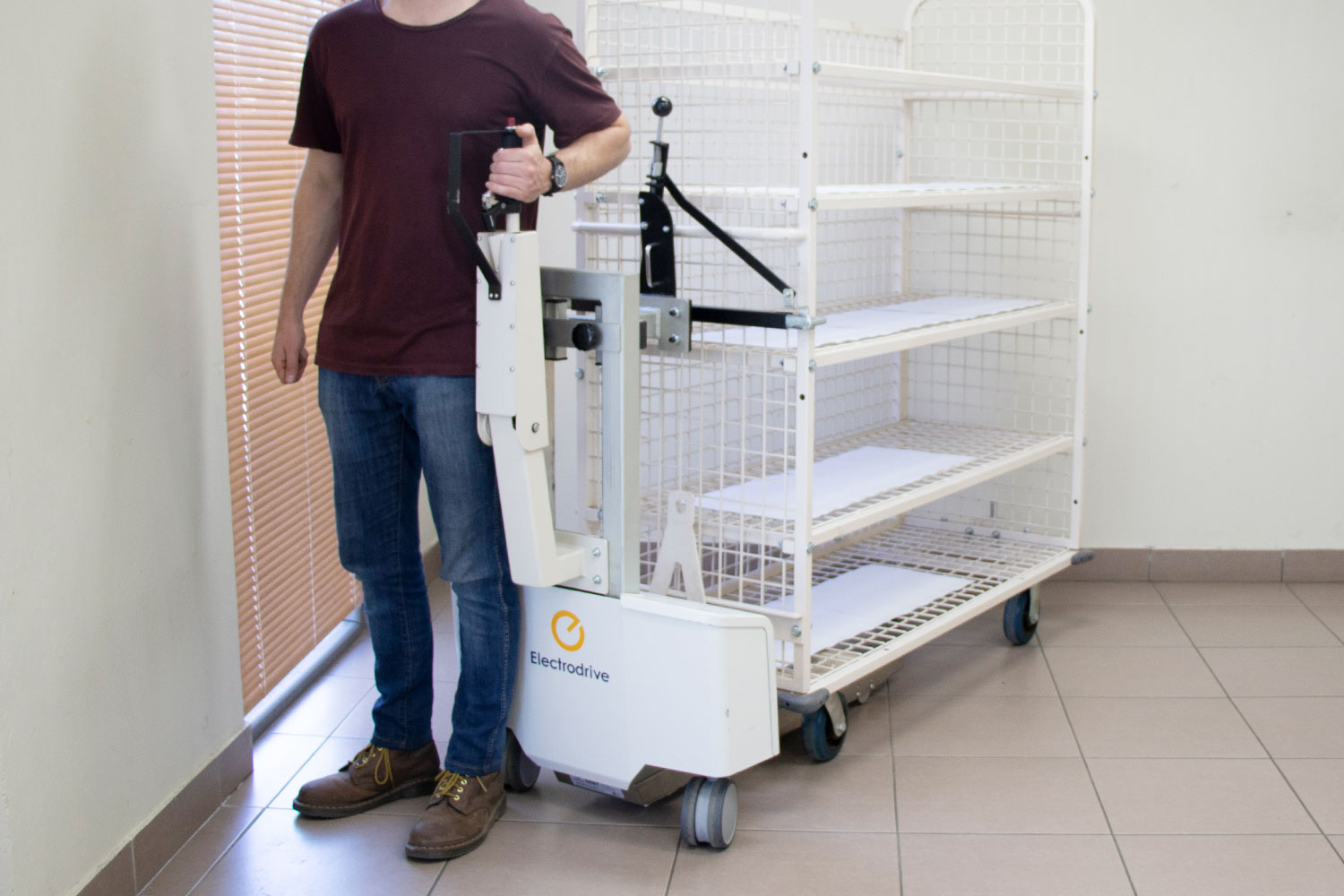

Electrodrive's Gzunda linen mover
The Gzunda linen mover

Ergonomically designed, compact electric linen trolley mover

The Gzunda Linen Mover is an ergonomically designed unit ideal for towing linen or laundry trolleys around hospitals or hotels.

The central tine acts as a powered fifth wheel fitting neatly under a trolley for effortless manoeuvrability.

No modifications are required to your existing fleet of trolleys, the Gzunda Linen Mover is suitable for trolleys with four swivel castors.

The linen mover’s compact design and folding tiller handle enables use in-and-out of lifts and in tight spaces, while keeping the user in-front-of-the-load—avoiding the risk of collisions.

The versatile hitch slides up and down providing a stable centre-of-gravity—crucial for towing tall heavy trolleys.

As with all Electrodrive equipment, the Gzunda linen mover comes with a comprehensive 12-month warranty, including parts and labour.

Proudly designed and manufactured in Australia.


Typical applications

Suitable for towing linen and laundry trolleys in and around hospitals or hotels.

Features and specifications

Order code

GZLINENMOVER

Load capacity

Move up to 500 kg.

Max. speed

Up to 5 km per hour.

Speed mode

Three speed control with forward, reverse and emergency stop.

Usability

  • Compact design. With the tiller handle folded, the unit adds only an extra 300 mm to the length of your trolley.

  • Central drive tine fits neatly under your trolley for increased manoeuvrability.

  • Easy to steer in tight corridors.

  • Battery operated and rechargeable.

  • Tiller control handle for ergonomic ‘front of load’ operation.

  • Simple to use.

  • Quiet, smooth operation.

  • Zero emissions.

Hitching

  • Supplied with a clamping hitch.

  • Wide variety of hitches available for easy attachment to trolleys.
    Check the hitching and accessories page for more information.

Country of origin

Designed and manufactured in Australia.

Safety features

  • Emergency stop button.

  • Emergency back-off button.

Warranty

  • Comprehensive 12-month warranty.

  • Six month warranty on battery and charger.

Service

Training and servicing programs are available.

Download our Preventative Maintenance Plans for more information.

Battery

Two 12V 260Ah MK-gel batteries with 24V smart charger.

Dimensions (L/W/H)

1759/676/1152 mm

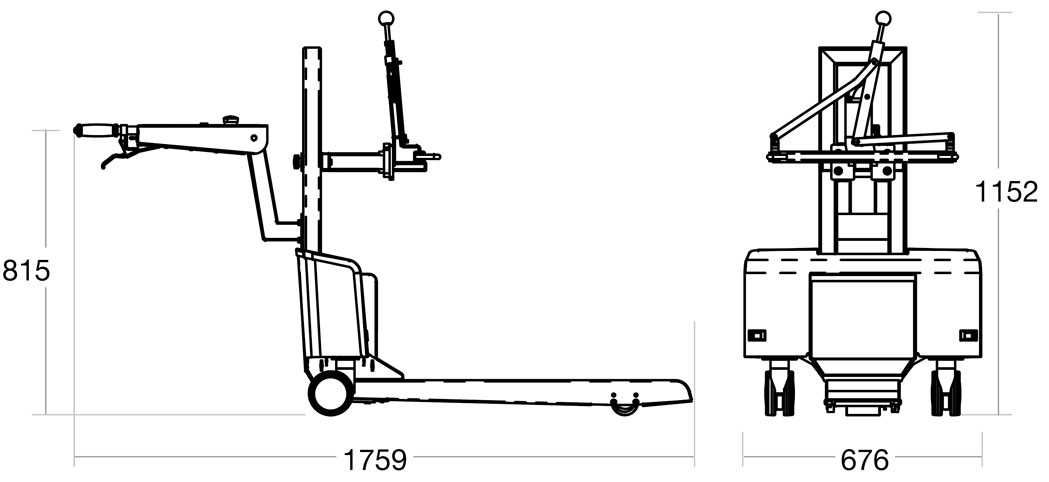

Gzunda linen mover diagram

The linen mover range

Browse the powered linen mover range.
